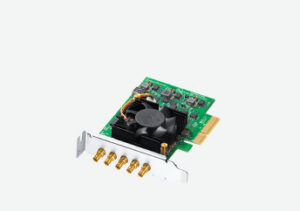

DeckLink Duo 2 Mini

Video Inputs/Outputs, four bidirectional mini-BNC 3G-SDI connections independently configurable as either input or output, supporting SD, HD, and 1080p60 resolutions. 16 channels of embedded audio at 48 kHz, 24-bit, compatible with SD and HD signals. Supports a wide range of SD and HD standards including 525i59.94 NTSC, 625i50 PAL, 720p50/59.94/60, and 1080p formats at various frame rates up to 60 fps. Color Precision, Offers 8, 10, and 12-bit RGB 4:4:4 on playback and 8, 10-bit YUV 4:2:2 formats on both input and output, with real-time hardware-based color space conversion. Built-in high-quality up, down, and cross-conversion for SD and HD signals with selectable aspect ratios and letterboxing options.
