Description

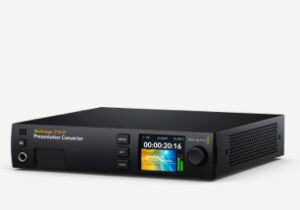

Front and rear USB-C, HDMI 2.0, and 12G-SDI inputs. The USB-C ports allow up to 45W laptop charging, HDMI output for projectors or monitors, SDI/HDMI output automatically standards converted to the target device or 2110 IP return. Audio Inputs/Outputs, Two combination 3-pin XLR/TRS mic/line inputs with +48V phantom power support, balanced XLR audio outputs for PA speakers, and a 6.35 mm headphone output. Embedded audio is supported over SDI and HDMI channels. IP Connectivity is RJ-45 10G Ethernet supports SMPTE-2110 IP streams, powering the unit and devices via PoE.
Standards and Encoding, Supports uncompressed 10-bit video under SMPTE-2110-20/-21/-30/-40 standards with multicast and PTP synchronization for high-quality broadcast.
